If you’re planning a home extension, loft conversion or new build, obtaining Building Regulations approval is just as important as securing planning permission.
While planning permission considers whether you’re allowed to build, Building Regulations ensure how the project is constructed is safe, structurally sound, energy‑efficient and compliant with current legislation.
A successful Building Regulations application depends on detailed technical drawings that clearly demonstrate compliance with the relevant Approved Documents.
This guide explains what Building Regulations drawings should include and why investing in a comprehensive drawing package can save time, money and costly site problems.
We provide professional Building Regulations Drawings for extensions, loft conversions and residential alterations.
Why Building Regulations Drawings Matter
Building Regulations drawings provide the technical information used by:
- Building Control
- Builders
- The structural engineer we collaborate with
- Specialist subcontractors
Well‑prepared drawings help to:
- Reduce Building Control queries
- Allow builders to provide accurate quotations
- Minimise construction errors
- Coordinate structural and architectural design
- Create a permanent record of compliance
Unlike planning drawings, Building Regulations drawings are construction documents and therefore require considerably more technical detail.
If you’re unsure about the difference, our guide Planning Permission vs Building Regulations: What’s the Difference? explains how the two approval systems work together.
General Arrangement Floor Plans
Floor plans form the foundation of the Building Regulations package. They should include:
- Fully dimensioned room layouts
- Wall thicknesses
- Door and window locations
- Stair positions
- Structural openings
- Plumbing fixtures
- Heating appliances
- Ventilation equipment
- Escape routes
Both existing and proposed floor plans are usually included so Building Control can clearly understand the changes being made.
Elevations
Building Regulations elevations contain more information than planning elevations. They commonly show:
- External finishes
- Roof coverings
- Window and door specifications
- Damp‑proof course levels
- Ground levels
- Safety glazing where required
These drawings help demonstrate compliance with thermal performance and weather protection requirements.

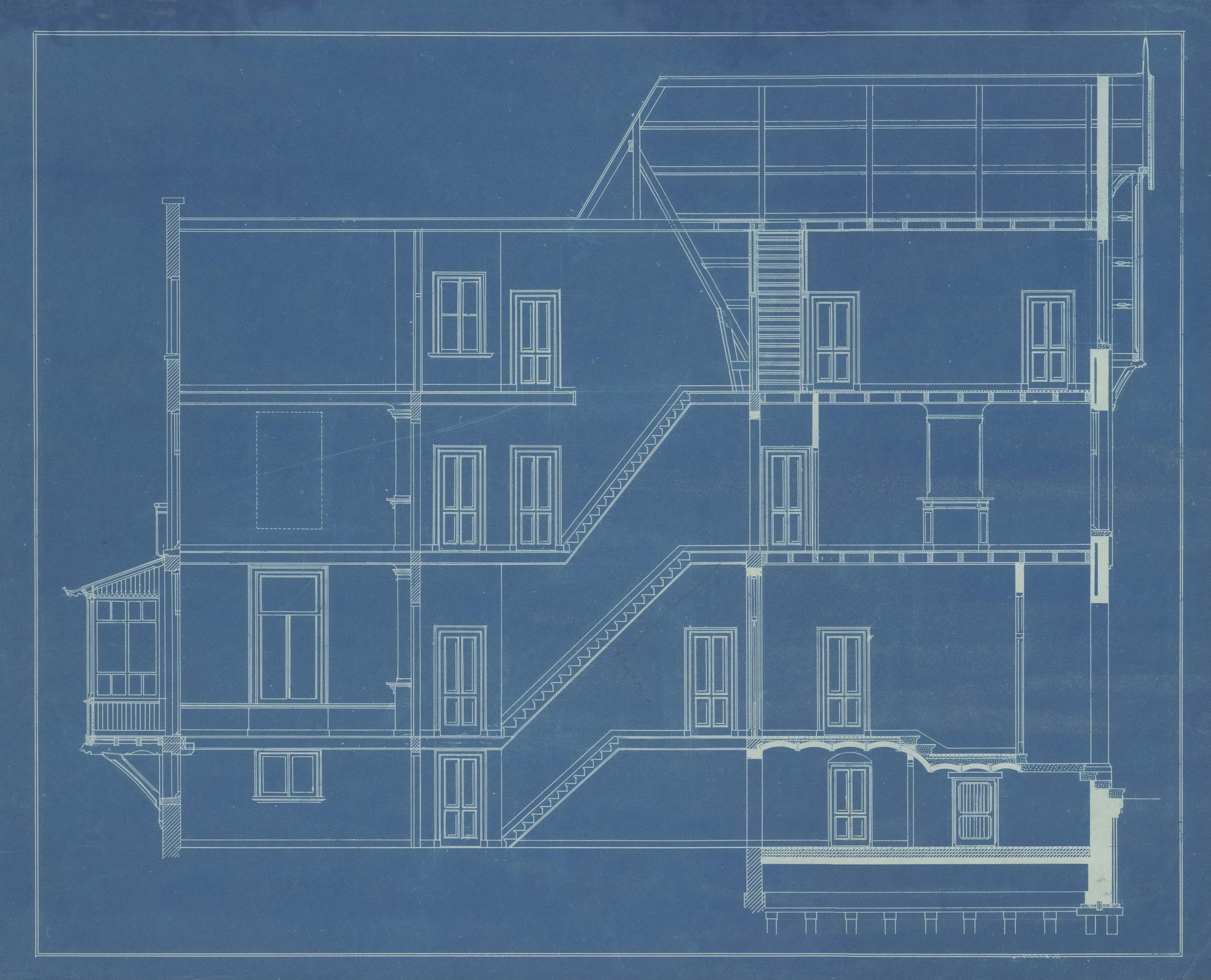

Building Sections
Sections cut through the building to illustrate how it will be constructed. Typical information includes:
- Floor construction
- Wall build‑ups
- Roof construction
- Ceiling heights
- Foundation depths
- Insulation
- Damp‑proofing
- Structural elements
Sections are essential for demonstrating compliance with several parts of the Building Regulations, including Parts A, C and L.
Construction Details
Some areas require enlarged drawings showing construction in greater detail. Typical details include:
- Roof‑to‑wall junctions
- Floor‑to‑wall junctions
- Window reveals
- Cavity trays
- Damp‑proof courses
- Lintels
- Insulation continuity
- Thermal bridge detailing
- Stair construction
These drawings often determine whether Building Control can approve the project without requesting further information.
Structural Drawings
Where structural alterations are proposed, additional drawings prepared by the structural engineer we collaborate with after a site assessment are normally required. These may include:
- Steel beam layouts
- Padstones
- Timber floor joists
- Columns
- Foundation details
- Connection details
Structural calculations normally accompany these drawings.
Drainage Drawings
Drainage proposals demonstrate compliance with Part H of the Building Regulations. Typical information includes:
- Foul drainage
- Rainwater drainage
- Inspection chambers
- Manholes
- Soakaways
- Pipe sizes
- Pipe gradients
- Connections to existing sewers
Drainage layouts should coordinate with both the architectural and structural drawings.
Heating and Ventilation
Building Regulations drawings should identify:
- Boiler locations
- Hot water cylinders
- Underfloor heating where applicable
- Mechanical extract ventilation
- MVHR systems where installed
- Background ventilation
- Air source heat pumps where proposed
These elements help demonstrate compliance with Parts F, G and L of the Building Regulations.
Fire Safety
Depending on the project, drawings may also show compliance with Part B by identifying:
- Escape routes
- Fire doors
- Smoke alarms
- Heat detectors
- Protected staircases
- Fire‑resistant construction
- Escape windows where appropriate
Fire safety is particularly important for loft conversions and multi‑storey dwellings.
Thermal Performance
Building Regulations drawings should clearly identify:
- Insulation types
- Insulation thicknesses
- U‑values where appropriate
- Thermal bridge details
- Air barrier locations
- Vapour control layers
Much of this information supports SAP calculations and demonstrates compliance with Part L (Conservation of Fuel and Power).
Accessibility
Where applicable, drawings should also demonstrate compliance with Part M, including:
- Door widths
- Level thresholds
- Accessible WC layouts
- Circulation spaces
- Stair design
Considering accessibility early often avoids costly alterations later.
Construction Notes and Specifications
Most Building Regulations drawing packages include written specifications alongside the drawings. These commonly cover:
- Wall construction
- Roof construction
- Floor build‑ups
- Insulation
- Ventilation
- Heating
- Drainage
- Electrical installations
- Fire protection
- Damp‑proofing
These notes help builders and Building Control understand exactly how the project will be constructed.
Planning Drawings vs Building Regulations Drawings
Although they may look similar, the two drawing packages serve very different purposes.
| Aspect | Planning Drawings | Building Regulations Drawings |
|---|---|---|
| Purpose | Demonstrate the appearance of the proposal | Demonstrate technical compliance |
| Focus | Focus on planning policy | Focus on construction standards |
| Layouts | Simplified layouts | Fully dimensioned drawings |
| Information | Limited construction information | Detailed construction information |
| Submission | Submitted to the planning authority | Submitted to Building Control |
Many homeowners mistakenly believe planning drawings are sufficient for construction. In reality, most builders require the much greater level of detail provided within a Building Regulations package.
Why Detailed Drawings Save Money
Comprehensive Building Regulations drawings often reduce overall construction costs by:
- Eliminating ambiguity
- Improving builder quotations
- Reducing variations during construction
- Coordinating structural and architectural information
- Avoiding delays with Building Control
Investing in detailed technical drawings at the beginning of a project is usually far less expensive than resolving problems during construction.
Need Building Regulations Drawings?
At Draw & Plan, we prepare comprehensive Building Regulations Drawings that provide builders and Building Control with the technical information needed to construct your project safely and efficiently.
Where planning permission is also required, our Planning Drawings service can prepare and submit your planning application before progressing to the technical design stage.
If you’re still deciding whether your project requires planning permission, our guide Do I Need Planning Permission? Your Complete Guide for England explains the approval process and common exemptions.
Ready to discuss your project? Contact us today for a free, no‑obligation quotation.
Disclaimer: This article is for general informational purposes only and does not constitute legal or professional advice. Always consult relevant professionals and local authorities before undertaking any development or change of use.
