If you’re planning a home extension, loft conversion, garage conversion or major renovation, one of the first things you’ll need is a measured building survey. It forms the foundation of your entire project by providing accurate existing drawings of your property before any design work begins.
Without precise measurements, architects and architectural designers have to rely on outdated plans or rough estimates, increasing the risk of costly mistakes during the design and construction process. A measured building survey creates an accurate record of your home as it exists today, ensuring your planning drawings and Building Regulations drawings are based on reliable information. Accurate existing-condition drawings are widely recognised as the essential starting point for planning, design and construction projects.
What Is a Measured Building Survey?
A measured building survey is a detailed survey of an existing property that records its dimensions, layout and architectural features. Using professional laser measuring equipment and CAD software, surveyors produce accurate technical drawings that show your property exactly as it exists.
These drawings typically include:
- Existing floor plans
- Existing elevations
- Roof plans (where required)
- Building sections
- Site plans
- Important dimensions and levels
Unlike estate agent floor plans, which are intended only to give buyers a general idea of a property’s layout, measured survey drawings are produced to a much higher level of accuracy and are suitable for planning applications, Building Regulations and construction work.
Why Do You Need a Measured Building Survey?
Nearly every residential design project starts with a measured survey because accurate drawings save time, reduce errors and help everyone involved work from the same information.
You will usually need a measured building survey if you’re planning:
- House extensions
- Loft conversions
- Garage conversions
- Internal remodelling
- Structural alterations
- Home renovations
- Change of use projects
The survey provides the accurate existing drawings needed to prepare your design proposals and submit your planning application.
If you’re considering an extension, you may also find our guide to Planning Drawings helpful.
Once planning permission has been granted, you’ll normally require Building Regulations Drawings before construction can begin.
What Does a Measured Building Survey Include?
The exact deliverables depend on your project, but a typical residential measured survey will include:
Existing Floor Plans
Detailed plans of every floor showing:
- Internal walls
- Doors
- Windows
- Staircases
- Chimneys
- Permanent fixtures
- Room dimensions
Existing Elevations
Scaled drawings of each side of the property showing:
- Windows
- Doors
- Roof shape
- External finishes
- Ground levels
- Overall building height
Building Sections
Where required, sections illustrate:
- Floor-to-ceiling heights
- Roof construction
- Split levels
- Structural relationships
Site Plan
Many planning applications also require a site plan showing:
- Property boundaries
- Existing buildings
- Garden layout
- Access points
- External structures
What Happens During the Survey?
Many homeowners worry that a measured survey is disruptive, but the process is usually straightforward.
Step 1 – Site Visit
A surveyor visits your property at an agreed time.
Step 2 – Measuring the Property

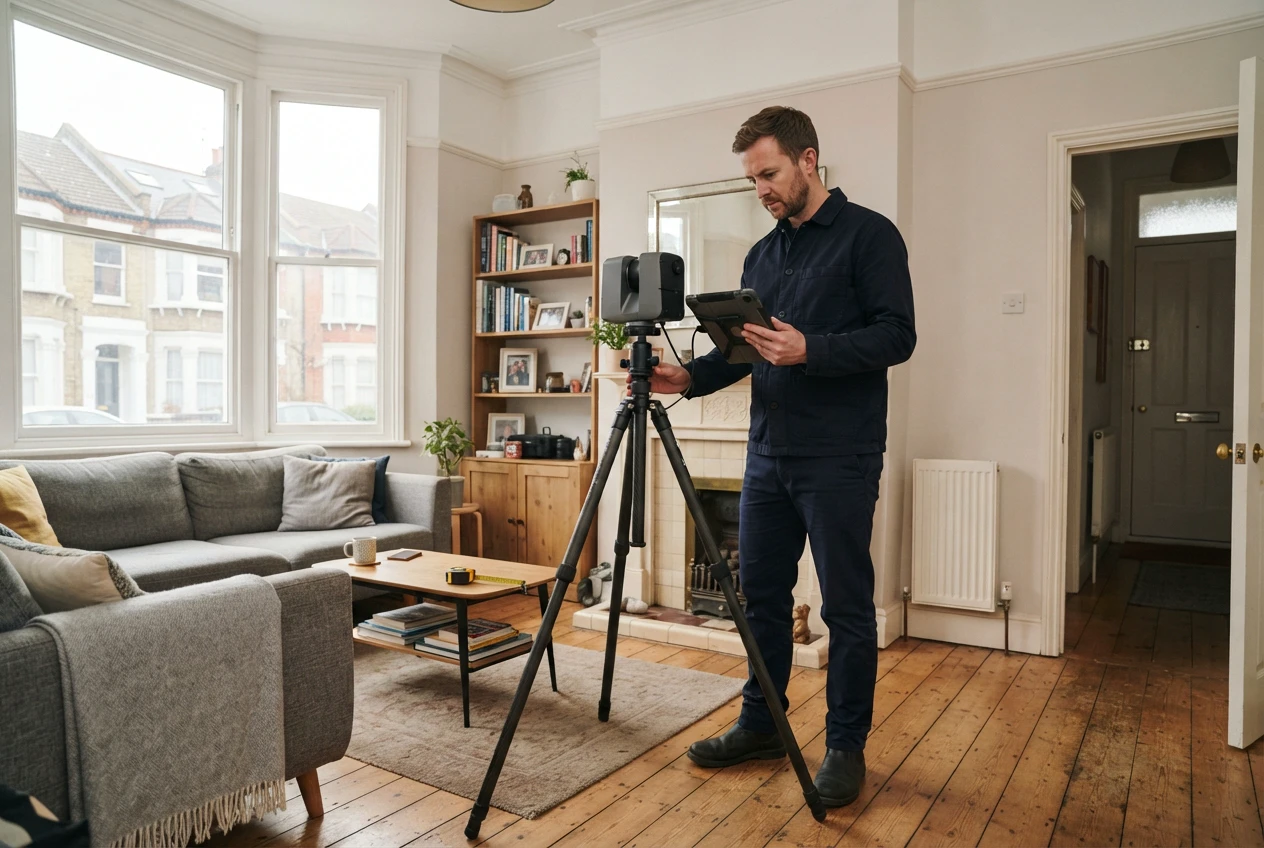

Using professional laser measuring equipment, every room is carefully measured.
Walls, windows, doors, staircases and other permanent features are recorded.
Step 3 – Preparing CAD Drawings
The measurements are converted into accurate CAD drawings using specialist software.
Step 4 – Design Work Begins
These drawings become the starting point for your planning drawings and Building Regulations package.
How Long Does a Measured Building Survey Take?
For most houses, the site survey takes between one and three hours, depending on the property’s size and complexity.
The drawings are then produced in the office before being checked for accuracy.
Larger properties, listed buildings and commercial premises naturally take longer.
Are Estate Agent Floor Plans Good Enough?
Usually not.
Estate agent plans are designed for marketing properties rather than construction.
They often:
- omit dimensions
- simplify layouts
- contain inaccuracies
- aren’t suitable for planning applications
- aren’t suitable for Building Regulations
Professional measured surveys provide the level of accuracy needed for design and construction.
Will My Original House Plans Be Accurate?
Not necessarily.
Many homeowners still have the original plans from when their property was built.
However, houses often change over time through:
- extensions
- internal alterations
- chimney removals
- new windows
- structural works
A measured survey records what actually exists today rather than what was originally built.
What Happens After the Survey?
Once the measured survey has been completed, your architectural designer can begin preparing your proposed design.
Depending on your project, this may include:
- Planning drawings
- House extension drawings
- Loft conversion drawings
- Building Regulations drawings
- Planning application submission
The measured survey becomes the foundation for the entire design process.
Why Accuracy Matters
Even small measurement errors can create expensive problems later.
Incorrect drawings may lead to:
- windows not aligning
- roof designs needing revision
- steel beams being incorrectly sized
- inaccurate material quantities
- delays during construction
Starting with accurate drawings helps reduce these risks and provides confidence that your project is based on reliable information.
Why Choose Draw & Plan?
At Draw & Plan, measured building surveys are the first step in delivering high-quality planning and Building Regulations drawings.
Our surveys provide accurate existing CAD drawings that form the basis of your entire project, helping homeowners across London move smoothly from the initial survey through planning permission and finally to construction.
Whether you’re planning a simple rear extension or a complete home renovation, we’ll ensure your project starts with accurate existing drawings.
Frequently Asked Questions
Do I always need a measured building survey?
Most extensions, loft conversions and major alterations benefit from one. Accurate existing drawings make the design process quicker and reduce the risk of errors.
How accurate are measured building surveys?
Professional surveys are carried out using specialist laser measuring equipment and CAD software to produce highly accurate drawings suitable for planning and construction purposes.
Can you prepare planning drawings from the survey?
Yes. Once the survey is complete, we use the drawings to prepare your planning drawings and submit your planning application if required.
Will I also need Building Regulations drawings?
In most cases, yes. Planning drawings explain what you want to build, while Building Regulations drawings explain exactly how it will be constructed.
