Client Brief
The homeowners wanted a brighter kitchen, dining and living space behind the existing house, with a roof extension and roof terrace adding space at upper level.
Wandsworth architectural drawings
House Extension & Loft Conversion Plans in Wandsworth
Draw & Plan prepares house extension plans, loft conversion drawings, planning drawings and Building Regulations drawings throughout Wandsworth, including Balham, Battersea, Putney and Tooting.
The borough’s Victorian and Edwardian terraces lend themselves to side-return and rear extensions, rear dormers and, on suitable houses, rear mansards. Starting from a measured survey, we design each scheme to remain subordinate to the original house and respect its character, as Wandsworth’s Housing SPD expects, with close attention to neighbouring daylight, outlook and privacy and to the added sensitivity of its conservation areas.
Wandsworth project · 2025
Rear Extension and Roof Extension in Wandsworth
A contemporary ground-floor rear extension with a roof extension and roof terrace for a house in Wandsworth.
Design Solution

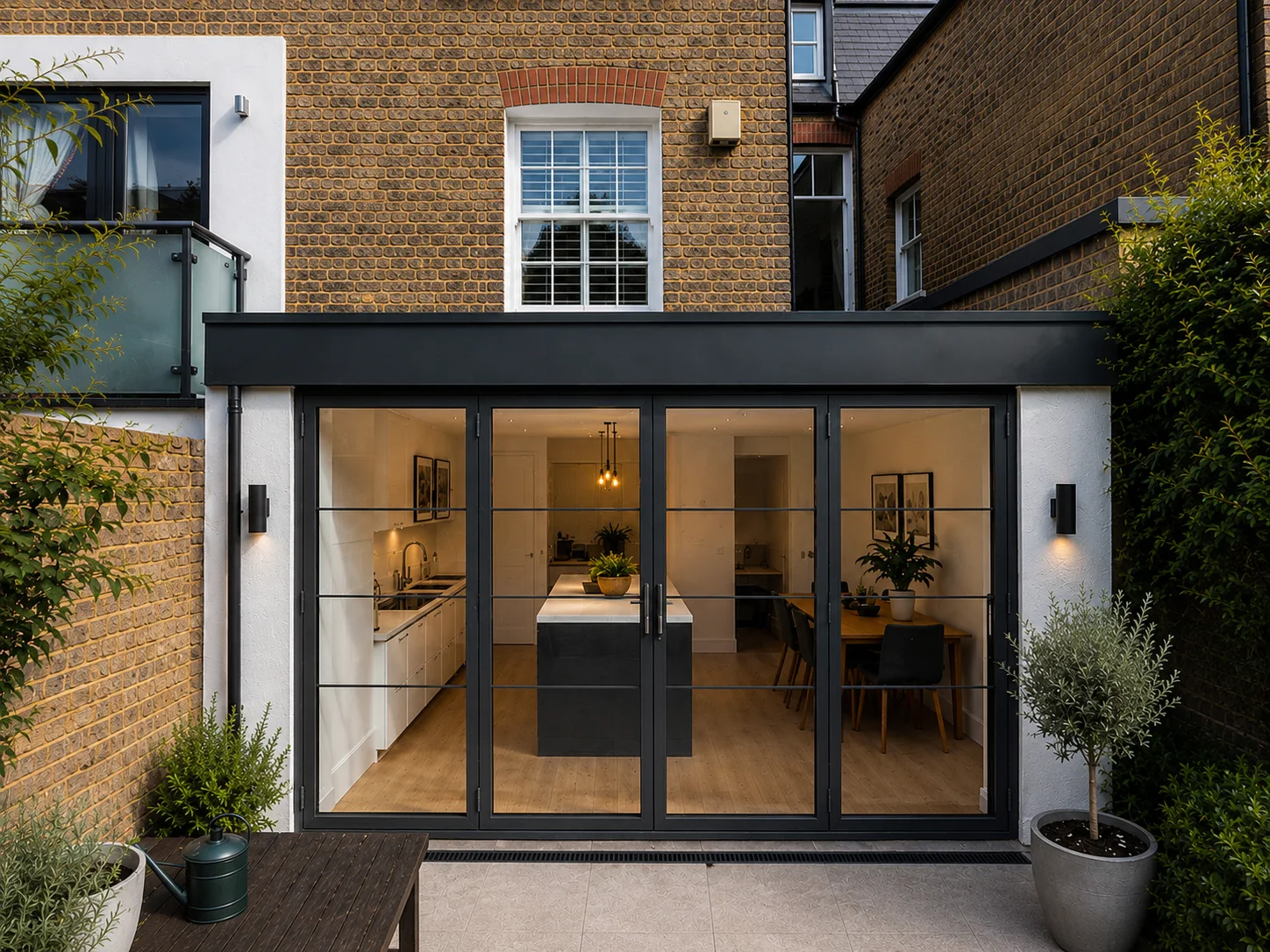

The ground-floor extension brings the kitchen, dining and living spaces together behind the original house, with full-height glazing giving the rear elevation a lighter, garden-facing character. The roof extension is kept to the rear, and the terrace sits within the rear roof arrangement so that its edge, screening and access are designed as part of the roof rather than added afterwards.

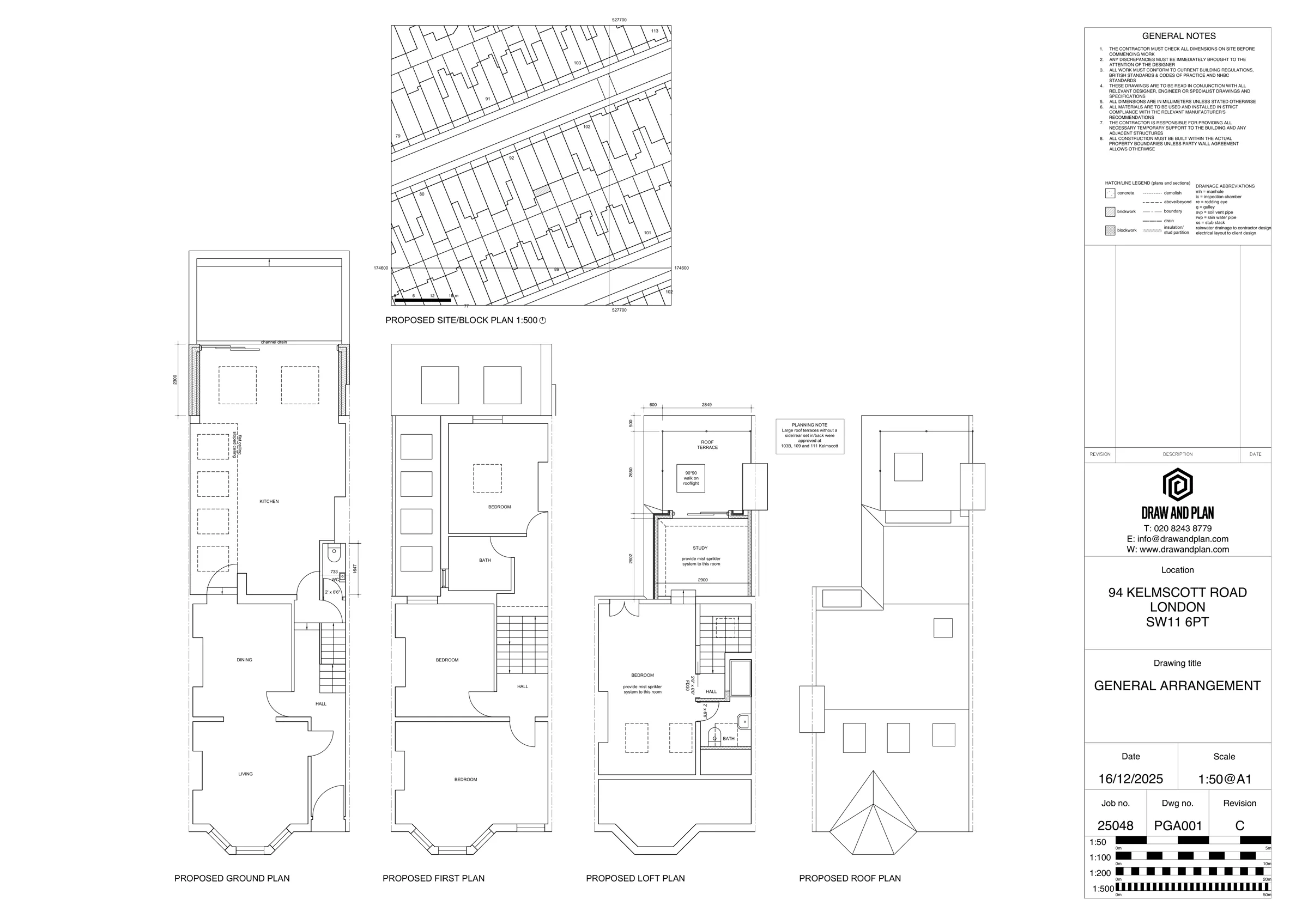

Project Drawings and Photographs
Planning an extension or loft conversion in Wandsworth?
Send us your property address and a brief description of the work you’re considering. We’ll carry out a desktop review of the relevant planning constraints, advise on the likely application route and provide a fixed-fee quotation. If you proceed, your architectural designer will personally visit the property to carry out the measured survey and discuss the proposed design.
Residential Architectural Design in Wandsworth
Draw & Plan provides affordable residential architectural design and drawing services across Wandsworth, for homes in Balham, Battersea, Putney and Tooting. Many of our Wandsworth projects are side-return and wraparound extensions that open up the back of a terraced house, often combined with a rear dormer in the loft.
We take each project from the measured survey through proposed design, the planning application and Building Regulations drawings, on a fixed fee. Find out more about ourresidential architectural design services.
Rear Extensions in Wandsworth
Rear extensions are generally less visually sensitive than extensions at the front of a house, but Wandsworth will still consider their size, appearance and effect on neighbouring properties.
An extension should respect the form and proportions of the original house rather than appearing as an overly dominant addition. The amount of garden remaining after the extension is also relevant.
Unlike some London boroughs, Wandsworth’s guidance does not provide one simple maximum planning depth that applies to every rear extension. The appropriate depth will depend on the particular property, the size of the garden and the relationship with neighbouring houses.
The Council will consider issues including daylight, sunlight, outlook, privacy and whether the extension would create an excessive sense of enclosure.
This means that a deeper extension may sometimes be possible where neighbouring properties are sufficiently separated, while a smaller extension may need careful design where it runs alongside a neighbour’s principal window.
Extensions Along a Neighbouring Boundary
The height of an extension close to a shared boundary can be just as important as its depth.
Wandsworth recommends minimising the height and bulk presented towards neighbouring properties. Two-storey extensions built directly on a neighbouring boundary should generally be avoided.
Using a roof that slopes down towards the boundary can therefore sometimes produce a more acceptable planning solution than a tall flat-roofed extension.
Side Extensions in Wandsworth
Side extensions can change the appearance of a house when viewed from the street, particularly on semi-detached and detached properties.
For a single-storey side extension, Wandsworth recommends setting the extension behind the original front elevation, using materials that relate appropriately to the existing house and generally incorporating a pitched roof.
Two-storey side extensions receive greater scrutiny because they can close the visual gap between neighbouring houses and create an unwanted terracing effect.
Where a two-storey side extension is acceptable, the Council recommends setting it behind the original front façade, keeping the new ridge below the main roof ridge and ensuring that the addition remains visually subordinate to the original house.
Loft Conversions in Wandsworth
Wandsworth’s guidance focuses on two main issues when considering loft conversions: the appearance of the roof extension and its effect on neighbouring properties.
The original roof form is important. A loft that already has reasonable internal headroom will generally be easier to extend sensitively because a smaller external addition is required.
Where a very large roof extension is necessary simply to create usable headroom, the additional bulk can make the proposal more difficult to justify.
Rear Mansard Loft Conversions
Rear mansards can be particularly suitable for some traditional Victorian and Edwardian terraced houses in Wandsworth.
Where houses are separated by raised party walls through the roof, Wandsworth identifies a steeply sloping mansard-style rear roof extension as a potentially appropriate solution.
The Council’s guidance illustrates a rear mansard slope of approximately 70 degrees for this form of traditional mid-terraced property.
A steep sloping rear roof is generally preferable to creating a completely vertical rear wall, which can make the loft extension appear more like an additional storey.
Rear Dormer Loft Conversions
Where a full rear mansard would be inappropriate, a smaller rear dormer may provide the additional headroom required.
Dormers should remain visually subordinate to the original roof rather than dominating it.
Wandsworth recommends carefully proportioned dormers and generally expects dormer windows to be smaller than the windows on the storey immediately below.
On properties with an uninterrupted roof slope and no raised party walls, setting a dormer below the ridge, above the eaves and in from the sides of the roof can help retain the appearance of the original roof.
Extensions Over a Rear Addition
Many Victorian houses in Wandsworth have an original rear addition or outrigger.
Extending the loft over this part of the house can provide valuable additional space but can also have a greater effect on neighbouring properties because rear additions are often positioned close together.
Where neighbouring amenity is a concern, Wandsworth identifies extending over approximately 50% of the length of the rear addition as a useful rule of thumb.
A longer extension may sometimes be possible where the relationship between properties means there would be no unacceptable effect on neighbours.
Hip-to-Gable Loft Conversions
A hip-to-gable conversion replaces the sloping side of a hipped roof with a vertical gable wall, creating substantially more usable loft space.
However, these alterations can cause planning problems where they disrupt the symmetry of a pair of semi-detached houses.
Wandsworth states that changing one side of an otherwise symmetrical pair from a hipped roof to a gable is unlikely to be supported where it would harm the appearance of the pair.
Hip-to-gable alterations are also generally inappropriate within conservation areas where the existing hipped roof contributes to the character of the building or street.
Extensions and Loft Conversions in Wandsworth Conservation Areas
Properties within conservation areas are subject to greater design scrutiny.
Original roof forms, hipped roofs, chimney stacks and other architectural features may make an important contribution to the character of the conservation area and should normally be retained.
Rear mansard-style roof extensions can sometimes be acceptable on traditional mid-terraced properties where they are not prominent from the street, while roof extensions on corner properties or highly visible elevations are considerably more sensitive.
Some parts of Wandsworth are also affected by Article 4 Directions that restrict particular permitted development rights.
Do I Need Planning Permission for an Extension in Wandsworth?
Not every extension requires a planning application.
Many houses benefit from national permitted development rights that allow certain extensions and loft conversions without conventional planning permission, subject to detailed limits and conditions.
Where a project qualifies as permitted development, it is often sensible to obtain a Lawful Development Certificate from Wandsworth Council confirming that the proposed works are lawful.
Flats and maisonettes do not benefit from the same householder permitted development rights, and additional restrictions can apply to conservation areas, listed buildings and properties affected by Article 4 Directions.
The permitted development position should therefore be checked for the individual property before the design is finalised.
Building Regulations for Wandsworth Extensions and Loft Conversions
Planning permission and Building Regulations are separate requirements.
Even where an extension or loft conversion does not require planning permission, Building Regulations approval will normally still be required.
The Building Regulations drawings typically address matters including structure, insulation, ventilation, drainage, fire safety, stairs and construction details.
Draw & Plan can prepare both the planning and Building Regulations drawing packages, helping to take a project from the initial survey through to construction information.
Architectural Drawings in Wandsworth
Draw & Plan provides residential drawing services throughout Wandsworth, for homes in Balham, Battersea, Earlsfield, Putney and Tooting, from the initial measured survey through to planning and Building Regulations drawings, including:
- Measured Building Surveys
- Planning Drawings
- Extension Drawings
- Loft Conversion Drawings
- Building Regulations Drawings
Frequently Asked Questions
How deep can a rear extension be in Wandsworth?
Wandsworth does not apply one fixed planning depth to every house. The Council considers the scale of the original property, remaining garden, neighbouring windows and the overall effect of the extension.
Can I build a rear mansard in Wandsworth?
Potentially. Rear mansards can work particularly well on some traditional mid-terraced houses with raised party walls, although conservation-area and visibility considerations remain important.
Can I build over the rear addition?
In some circumstances. Where neighbour impact is an issue, Wandsworth identifies approximately half the length of the rear addition as a useful starting point, although every property needs individual assessment.
Can I do a hip-to-gable loft conversion?
Possibly, but it can be difficult where changing one roof would disrupt the symmetry of a pair of semi-detached houses or the character of a conservation area.
Can Draw & Plan submit my Wandsworth planning application?
Yes. We can prepare the existing and proposed drawings and submit the planning application or Lawful Development Certificate application on your behalf.
